Alpine R-S69C.2 6" x 9" High Performance Component Speakers

Meet the 2nd generation of R-Series speakers: packed with many improvements for increased sound quality and bass performance.

If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.

The 2nd generation of R-Series speakers include many improvements over the 1st generation, such as the increased voice coil diameter from 30 to 35mm, while the Neodymium magnet diameter was also enlarged. This results in a stronger motor structure with a more powerful bass output.

Peak Power: 300 Watts

RMS Power: 100 Watts

Frequency Response: 65 Hz - 40 kHz

FEATURES

Tweeter

• 1′′ (2.5cm) Ring Radiator Tweeter
• CFRP (Carbon Fiber Reinforced Polymer) Voice Coil
• Neodymium Magnet
• Swivel Application
• Flush Mount, Surface Mount Application
• Hi-Res Audio Compliant

Woofer

• CFRP (Carbon Fibre Reinforced Polymer) Cone
• Linear Drive Technology
• HAMR Surround
• Large 35mm Aluminium Voice Coil
• Aluminium Square Wire
• Ultra High Density Neodymium Magnet
• DX Ring
• Wave Guide
• Shallow Mounting Design
• Mounting Adapter Kit Included
• Bi-Amp Ready Design

Crossover Network

• In-line Network Design
• Tweeter level Adjustment: 3 Steps ( +3, 0, -3 dB)
• High Grade Network Components

SPECIFICATIONS

Power Handling

• Peak Power: 300 Watts
• RMS Power: 100 Watts

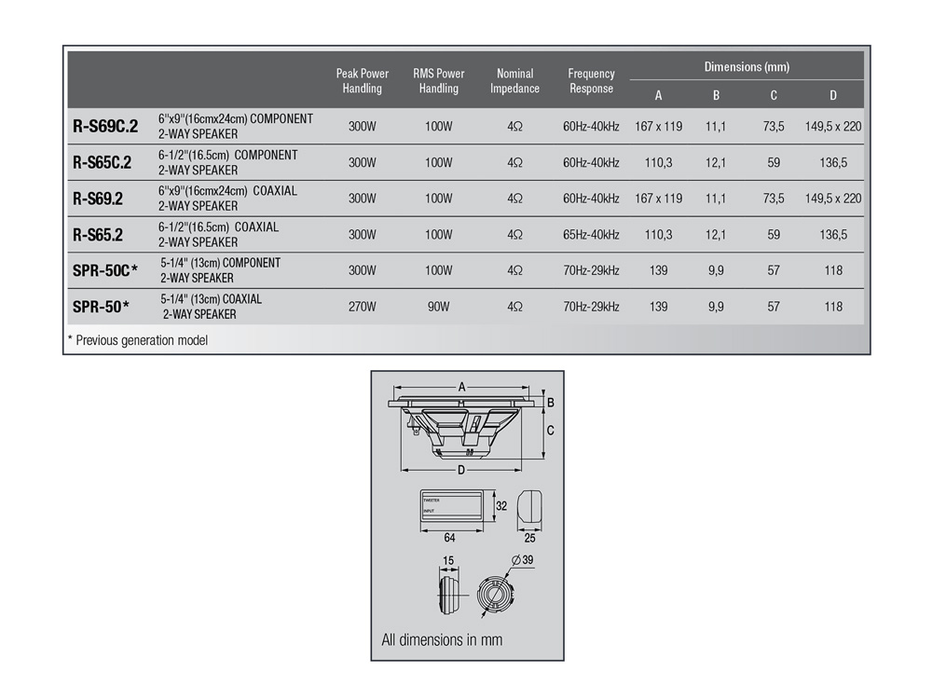

Dimensions

• Woofer Mounting Diameter: 150 mm x 220 mm
• Woofer Mounting Depth: 74 mm
• Tweeter Mounting Diameter: 51 mm
• Tweeter Mounting Depth: 17.6 mm

General

• Frequency Response: 65 Hz - 40 kHz
• Imp Impedance: 4 Ohms
• Sensitivity: 90 dB/W (1m)
