SKU 80107

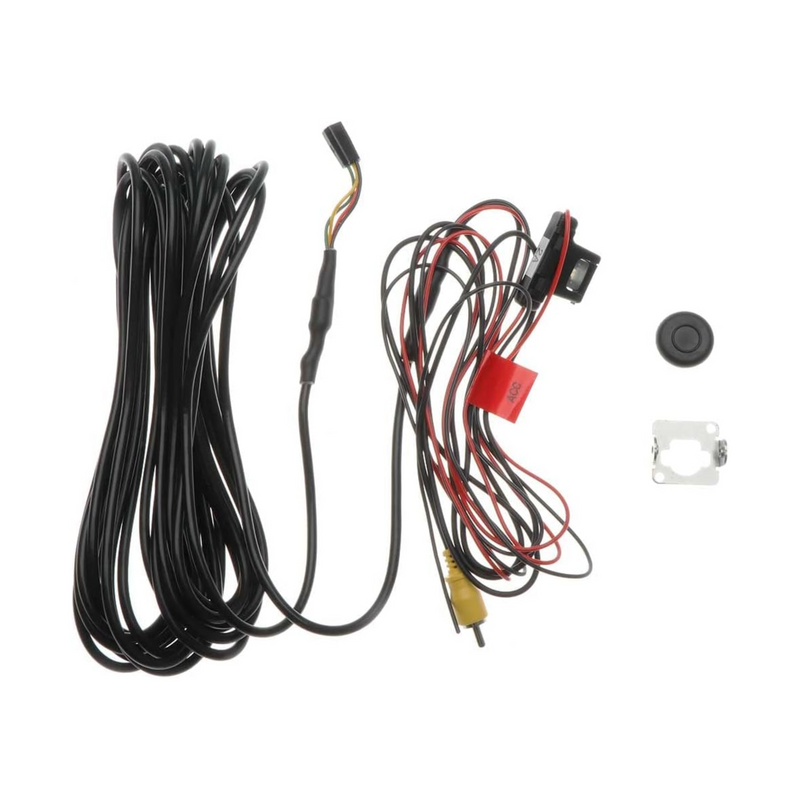

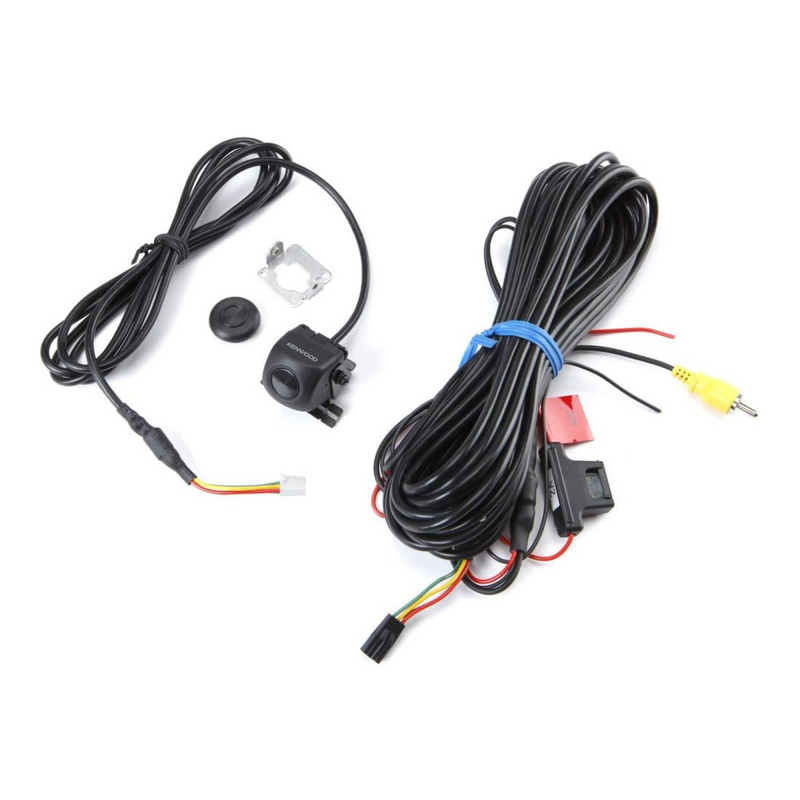

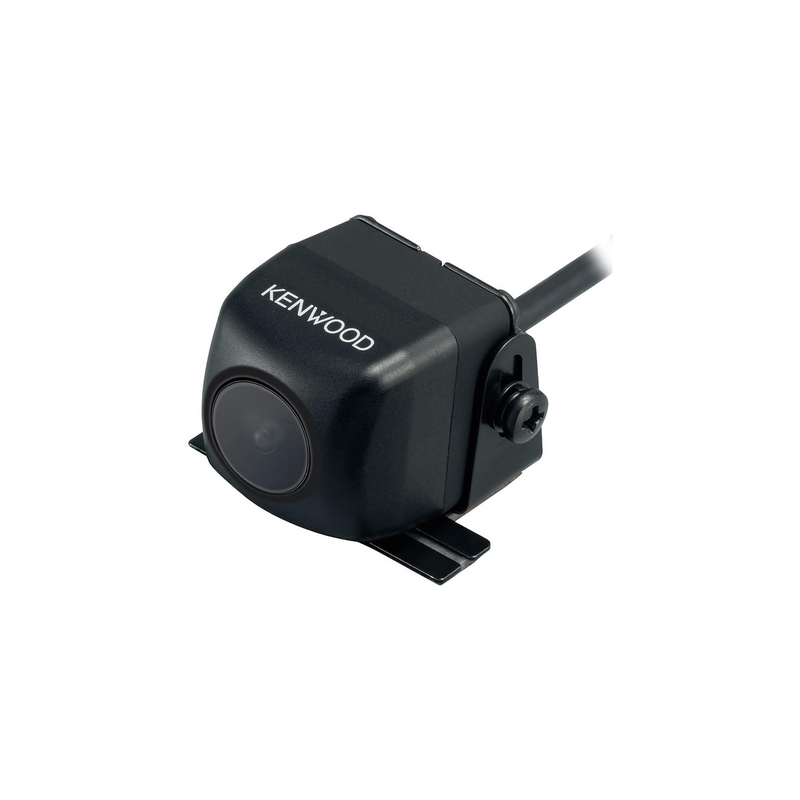

Kenwood CMOS-230 Universal Rear View Camera

Original price £79.99 - Original price £79.99
Original price
£79.99
£79.99 - £79.99
Current price £79.99
Availability:
Low stock

Delivery time

Delivery will be made by common carrier within 3-5 working days from order.

Next Day Delivery options (for orders made before 3pm) available at Checkout

Kenwood rear-view camera. High quality, waterproof colour camera for rear-view and reversing applications. Key Features: Wide-angle mirror image 1/3.6' Colour CMOS sensor Waterproof unit with flexible mount base NTSC Video Signal Out (RCA) Camera Unit: Camera Type: 1/3.6' colour CMOS sensor Colour type Effective number of pixels roughly: 330000 High sensitivity Pixels Output video: wide-angle mirror image Waterproof chassis Mounting system: Fexible mount base Installation positions: Rear Camera ID setting Rear view switching: Reverse line High voltage protection Wide angle lens Focal length: f: 1.12mm, F value 2.2 Horizontal Angle view: +/- 128° Vertical Angle View: +/- 103° Illumination range: approx. 0.9 to 100000 lux Iris System: Electronic White balance: Automatically Scanning System: Interlace Synchronizing System: Internal Video output level: 1Vpp, 75Ω Video signal format: NTSC (Mirror) Connection cable (DC+video): 9 m General Specifications: Operating voltage 14.5V (9 ~ 16V Allowable) Current Consumption 0.05A Dimensions Main Unit (WxHxD) 23.4 x 23.4 x 23.9mm Operation Temperature Range -30°C ~ 70°C Storage Temperature Range -40°C ~ 80°C
