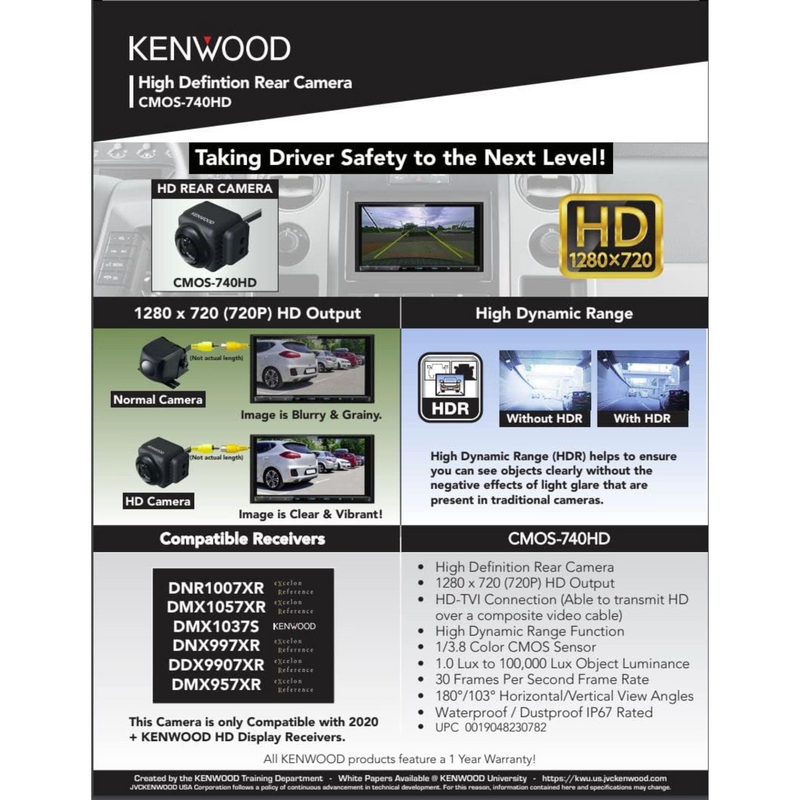

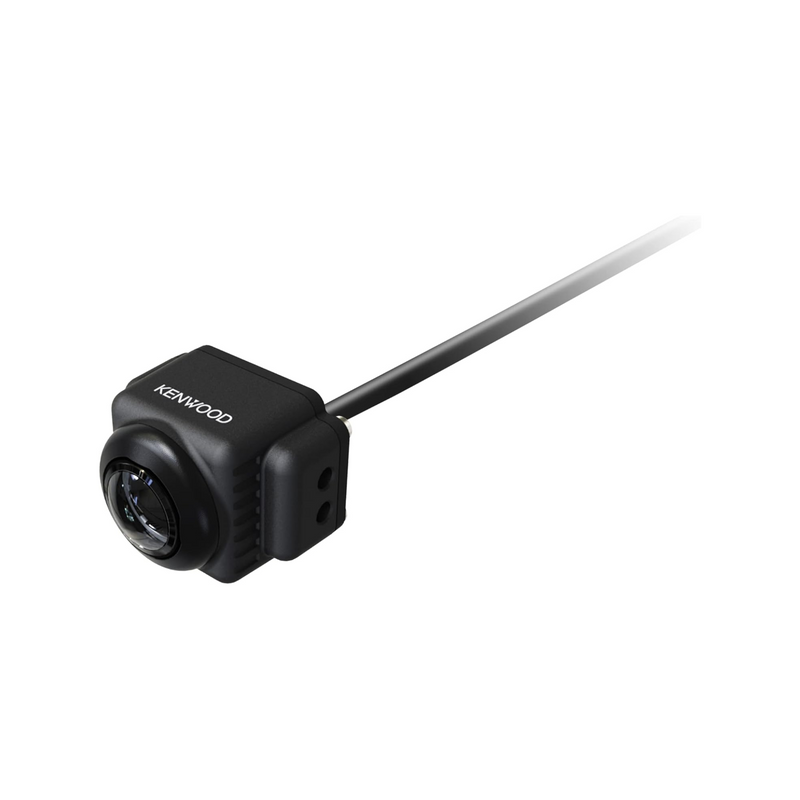

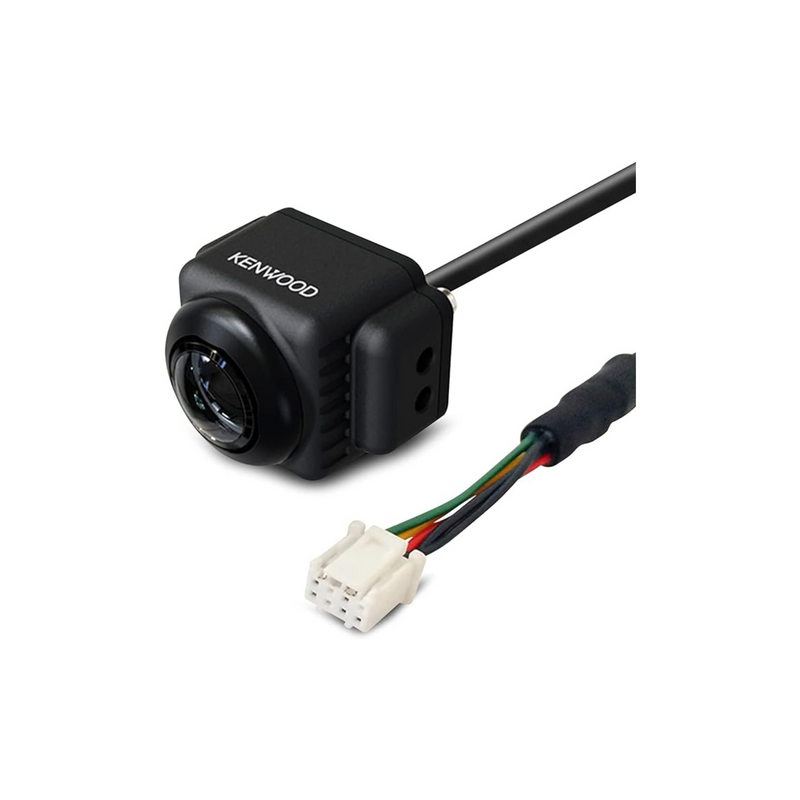

The Kenwood CMOS-740HD offers a remarkable high-definition rear and front dash camera solution for your vehicle.

HD Rear Camera for High-Definition Imaging Experience the clarity of high-definition imaging with the CMOS-740HD camera. It provides a wide 180° horizontal view in stunning HD quality. Whether you need a clear view of the front or rear while parking, this camera has you covered. The camera's HD-TVI technology allows it to transmit and display HD videos on compatible KENWOOD AV-receivers using a standard analog RCA cable.

HDR (High Dynamic Range) Technology One of the standout features of this camera is its built-in High Dynamic Range (HDR) technology. HDR helps overcome challenging lighting conditions by reducing "blown out highlights" and "crushed blacks." This ensures that your camera captures clear images, even in situations with extreme light-dark contrast, such as backlit scenes during the day or scenes illuminated by streetlights at night. You can count on this camera to deliver excellent image quality in various environments.

Dust and Water Protection (IP67 Certified) The CMOS-740HD is designed to withstand the elements. With its IP67 certification, this camera is protected against both dust and water. You can install it confidently outside your vehicle, even in wet or dusty environments, knowing that it will continue to perform reliably.

Compatibility Please note that this HD camera is compatible with select KENWOOD AV-receivers equipped with an HD camera input. Ensure you have a compatible receiver to enjoy the benefits of this high-definition camera.

  • High-Definition Imaging (1280 x 720px): This camera delivers high-definition imaging with a resolution of 1280 x 720 pixels, ensuring clear and detailed video capture.
  • HDR (High Dynamic Range): The camera features High Dynamic Range technology, which enhances image quality by balancing exposure in varying lighting conditions, resulting in better clarity and contrast.
  • IP67 Waterproof and Dustproof: It has an IP67 rating, making it both waterproof and dustproof. This ensures the camera's durability and reliability even in challenging weather conditions.
  • Wide-Angle Lens, Focal Length: 1.86mm F:2.0: The camera is equipped with a wide-angle lens with a focal length of 1.86mm and an aperture of F:2.0. This wide-angle lens provides a broad field of view, capturing more of the surroundings.
  • Horizontal 180°/ Vertical 103° Angles of View: With horizontal and vertical angles of view of 180 degrees and 103 degrees respectively, the camera offers extensive coverage, reducing blind spots and increasing safety.
  • HD-TVI Output Signal: The camera utilizes an HD-TVI output signal, ensuring high-quality video transmission and compatibility with your DMX9720XDS system.

Camera Type1/3.8-inch colour CMOS sensor
Number of Pixels1280 (Vertical) x 720 (Horizontal)
Effective Number of PixelsRoughly 1,300,000
High Sensitivity PixelsYes
Output VideoHD-TVI
Waterproof ChassisYes
Mounting SystemFix mount base
Installation PositionsFront or rear
Rear View SwitchingReverse line
High Voltage ProtectionYes
Wide Angle LensYes
Focal Lengthf: 1.86mm, F value 2
Horizontal Angle View+/- 180°
Vertical Angle View+/- 103°
Illumination RangeApprox. 1 to 100 lux
White BalanceHDR
Video Signal FormatHD-TVI
Camera Cable to Power Supply Box3 meters
DC Cord6 meters

General Specifications

Operating Voltage12V (12 ~ 24V Allowable)
Dimensions Hideaway Unit (WxHxD)69.2 x 23.6 x 15.5mm
Dimensions (WxHxD)31.1 x 23 x 25.2mm
Weight33.2 grams
Operation Temperature Range-30°C ~ 85°C
Instruction ManualsMulti-language quick Guide

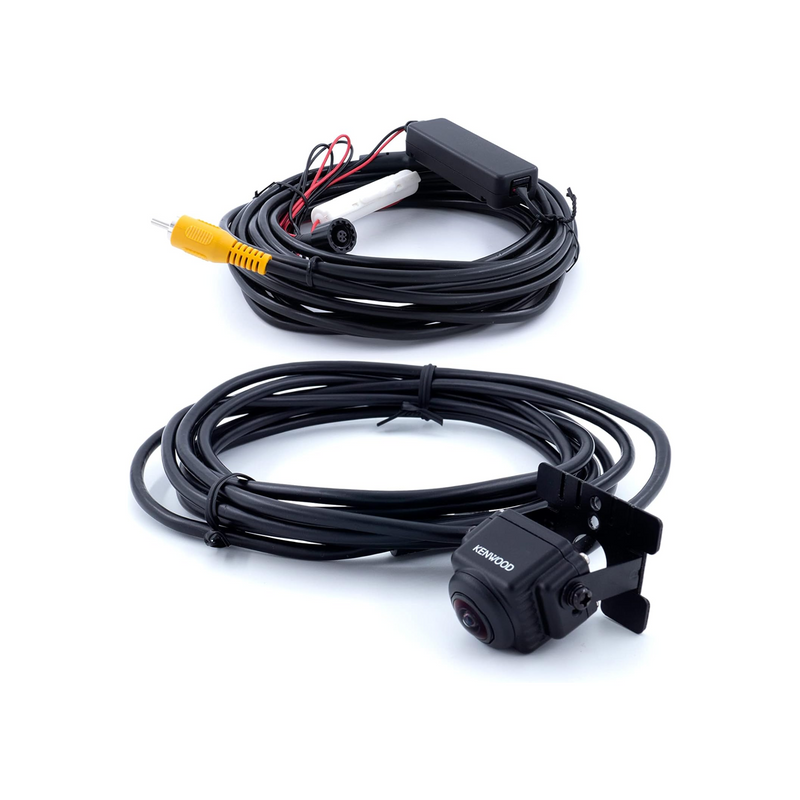

  • Camera
  • Power Cord (6m)
  • Power Unit x1

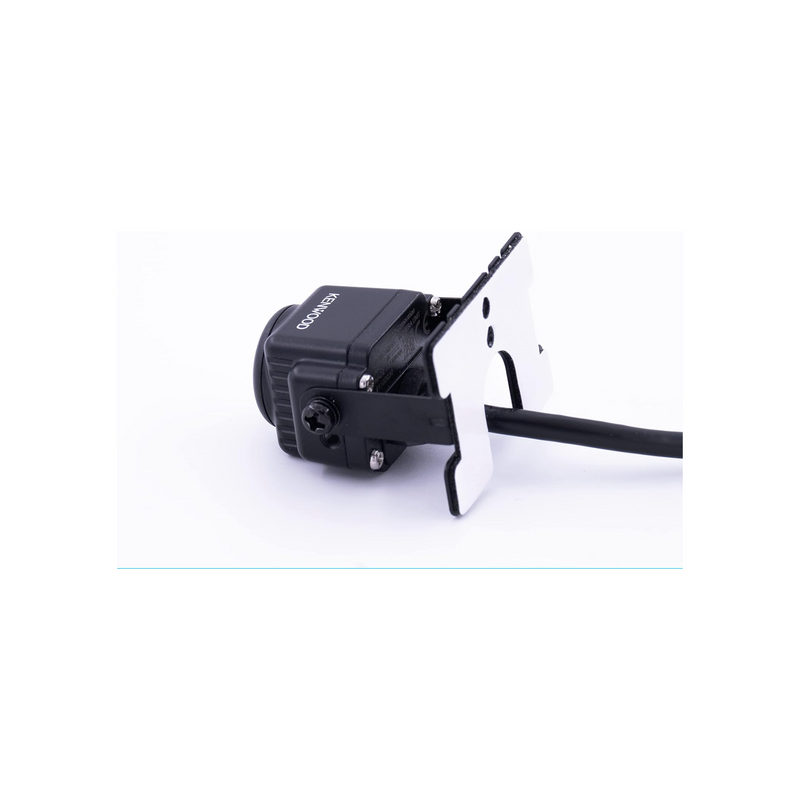

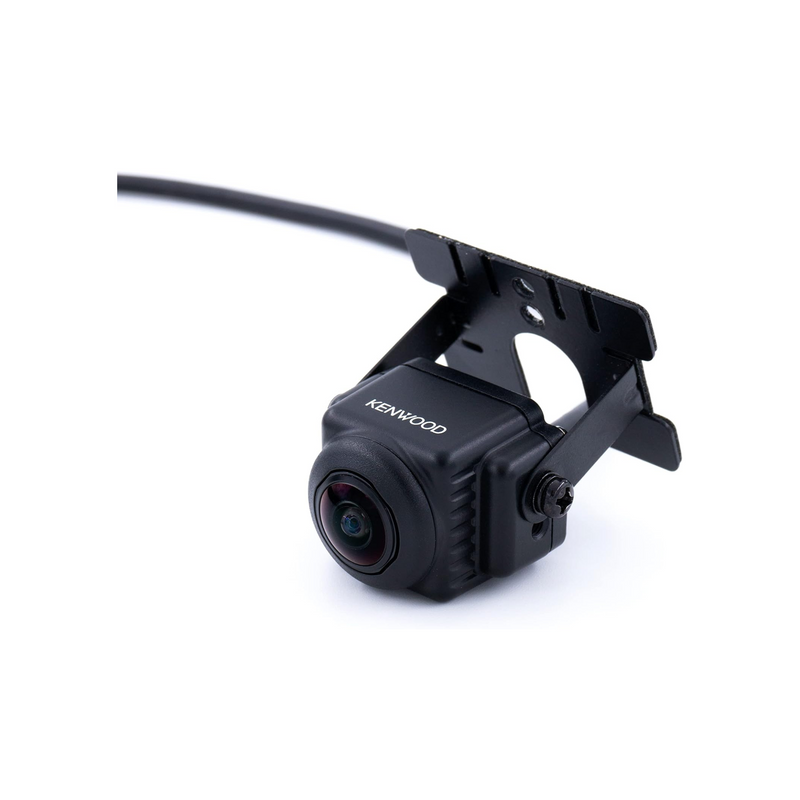

  • Camera Bracket
  • Screw (M3 X 5mm) x2
  • Camera Bracket Clamping Screw x1
  • Grommet x1
  • Band x1
