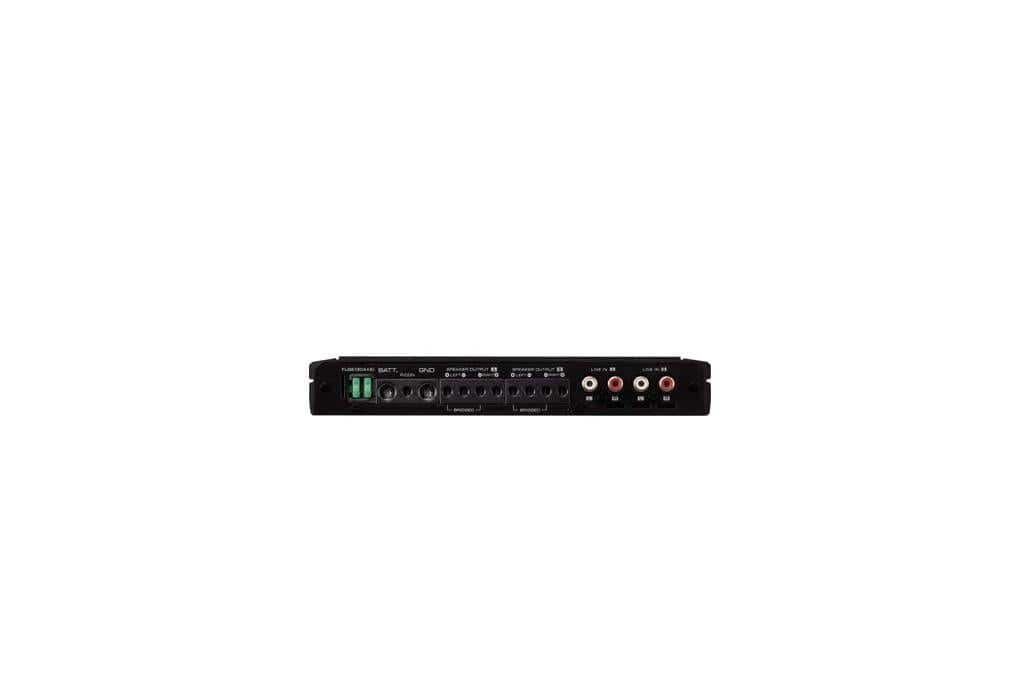

Kenwood XR400-4 1000W 4-Channel Digital Power Amplifier

Kenwood XR400-4 1000W 4-Channel Digital Power Amplifier

by Kenwood
SKU 228385
£399.99 - £399.99
£399.99
£399.99 - £399.99
£399.99
Availability:
In stock
  • Free & Next-Day Delivery Available

    Order Before 3PM For Nexy Day Delivery (When Sleected)

  • Hassle-Free Returns Within 30 Days

    No-quibble Returns Within 30 Days Of Delivery (T&Cs apply)

  • Free & Next-Day Delivery Available

    Discount Prices, Top Quality Products

As the smallest amplifier in it's class in the world, the XR-400-4 mono amplifier - overcomes thermal radiation issues inherent to compact amplifiers and pack powerful Kenwood technology into a small form that enables installation in tight locations previously restricted to lower performance amps. This is ideal for users who do not wish to sacrifice boot space or prefer stealth installation.

Amplifier Features

Class D Amplifier Yes
Full Range Digital Amplifier Yes
Load Capability 2Ω Stable
Maximum power output 1000W
Rated power output (4Ω) 75W x 4 (4Ω)
Rated power output 100W x 4 (2Ω)
Bridged power output (4Ω) 200W x 2
CEA-2006 Compliant Yes
Low-pass Filter Yes
High-pass Fliter Yes
Dual Mono Drive Capability Yes
Switched Mode Power supply Yes, with Power MOS-FET
Power Indicator Yes
Protection function Yes
Line in 2 RCA (Gold Plated) A/B
Input Selector A/AB
Single Side Terminals Yes
Full Contact Terminal Yes
Gold Plated Power & Speaker Terminals Yes
Chassis

Aluminum Die-cast



Amplifier-Specifications

Maximum power output (4Ω) 250W x 4
Rated power output (4Ω, 14,4V) 75W x 4 (20Hz ~ 20000Hz, 1%THD)
Rated power output (2Ω, 14,4V) 100W x 4 (1000Hz, 1%THD)
Rated power output (4Ω, 14,4V) 200W x 2 (1000Hz, 1%THD)
Rated power output (CEA-2006) 75Watts RMS x 4 at 4 ohms and 1% THD
Low-pass Filter 50~200Hz & 2,5~10kHz (-12dB/oct)
High-pass Fliter 50~200Hz & 2,5~10kHz (-12dB/oct)
RCA Input Sensitivity 0.2 ~ 5V
Input Impedance 10kΩ
Signal to Noise Ratio 100dB
Signal to noise ratio (CEA-2006) 76dBa (Reference: 1 Watt into 4 Ohms)
Frequency response (+0dB, -3dB) 20Hz ~ 20000Hz
Operating voltage 14.4V (11V ～ 16V allowable)
Maximum current consumption 37A
Dimensions (WxHxD) 220 x 35 x 169(mm),
Weight 1.5kg
