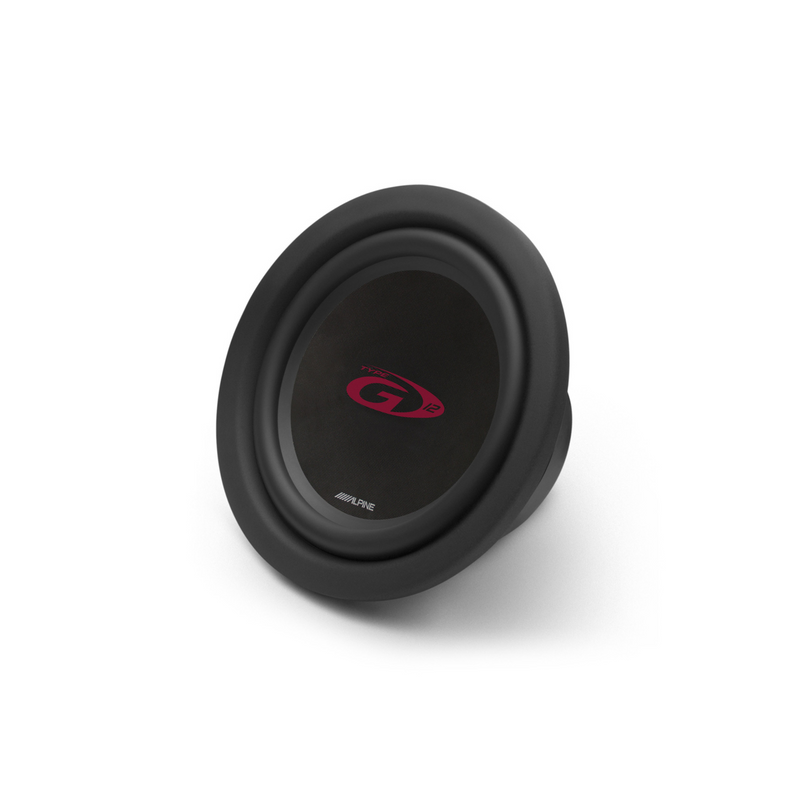

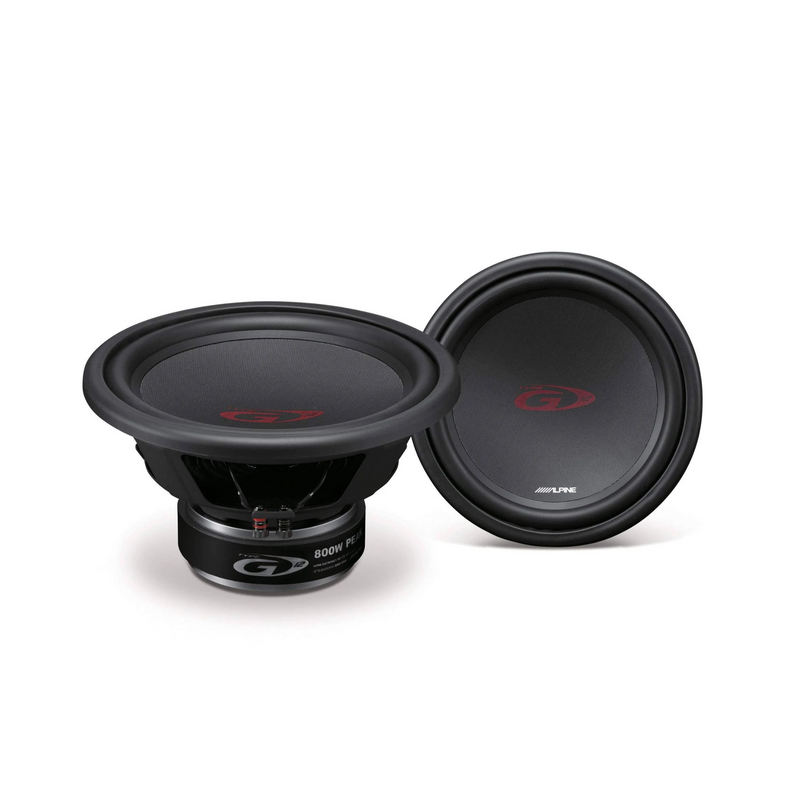

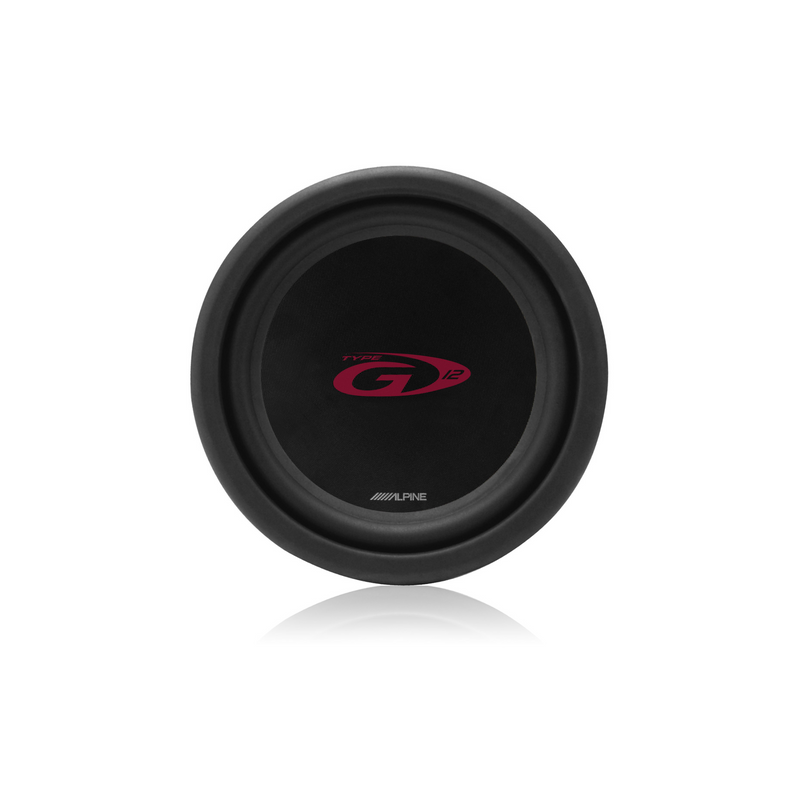

Alpine SWG-1244 12" 800W Car Subwoofer

Powerful Bass Performance without Breaking the Bank

Experience high-performance bass without breaking the bank with the Alpine Type-G subwoofers. These subs boast a highly efficient design and utilise all-new cone materials, allowing them to deliver louder, deeper bass. With a shallower mounting depth, you have the flexibility to install these subs in various locations within your vehicle.

Perfect Companion for Type-G Speakers

The Alpine SWG-1244 12" Type-G subwoofer is the ideal match for Type-G speakers. It offers impressive bass output, high power handling, and efficiency—all at a budget-friendly price point.

  • 12" (30cm) 800W Peak Subwoofer:
    Delivers powerful bass with an impressive peak power of 800W.
  • 4-Ohm Single Voice Coil:
    Equipped with a single voice coil with a 4-ohm impedance.
  • RMS Power:
    Offers a continuous RMS power output of 250W for sustained performance.
  • Frequency Response:
    Provides a wide frequency response range from 28Hz to 1kHz, ensuring deep bass and clear audio reproduction.
  • Sensitivity:
    Boasts a high sensitivity rating of 89.8dB/W (1m), allowing it to produce loud and clear sound with minimal power input.
  • Installation Diameter:
    Requires a mounting diameter of 282mm for installation.

Nominal Impedance4 Ω
Frequency Response28 - 1 kHz
Sensitivity (SPL@1W/1m)89.8 dB
D.C Coil Resistance (Re)3.6 Ω
Inductance (Le) 1kHz/20kHz1.02 mH / 0.24 mH
Free Air Resonance (Fs)28 Hz
Equivalent Stiffness (Vas)75 L (2.65 ft³)
Mechanical Q (Qms)3.27
Electrical Q (Qes)0.43
Total Q (Qts)0.38
Linear Excursion (One-Way) (Xmax)10 mm
Magnetic Linear Excursion, One-Way (Xmag)23 mm
Mechanical Excursion, Peak-to-Peak50 mm
Gap Height (Hag)10 mm
Coil Height (Hvc)30 mm
Cone Area (Sd)502 cm²
Voice Coil Diameter50 mm (2")
Magnet Weight104 oz (2.95 Kg)

  • Alpine SWG-1244
  • Installation Essentials
  • User Manual
