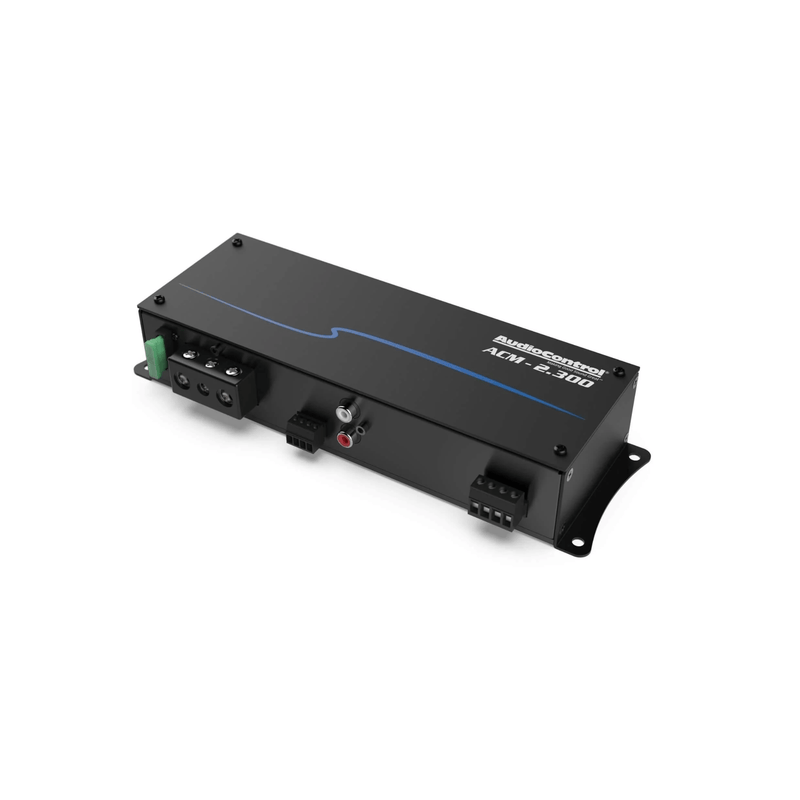

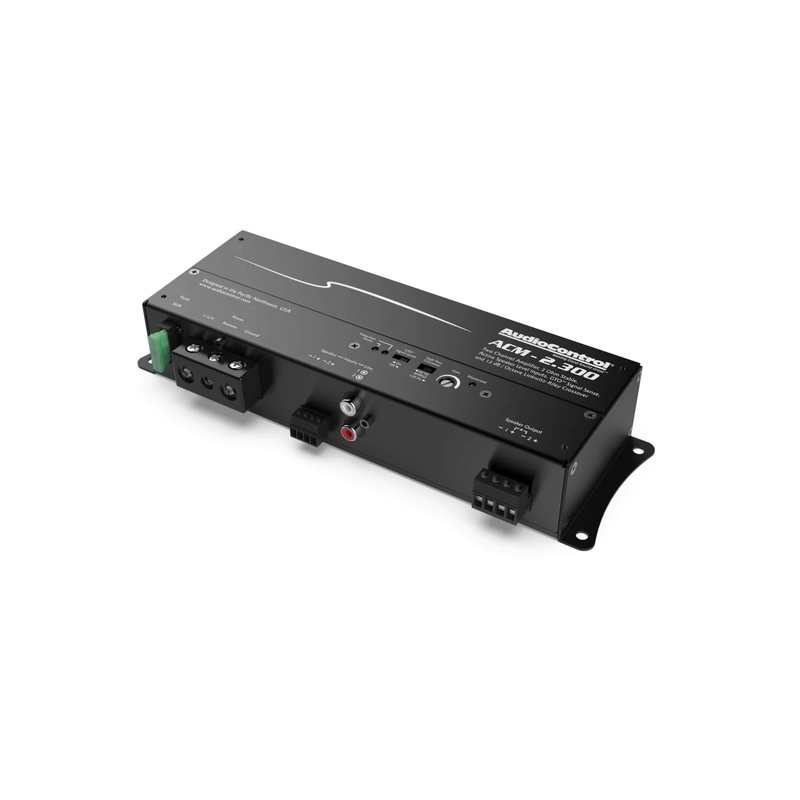

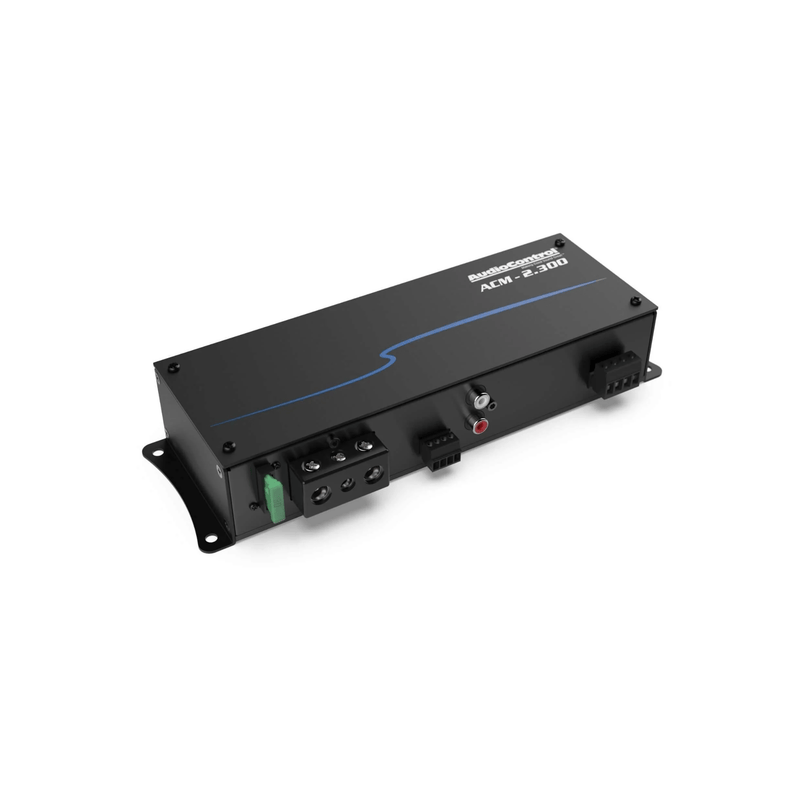

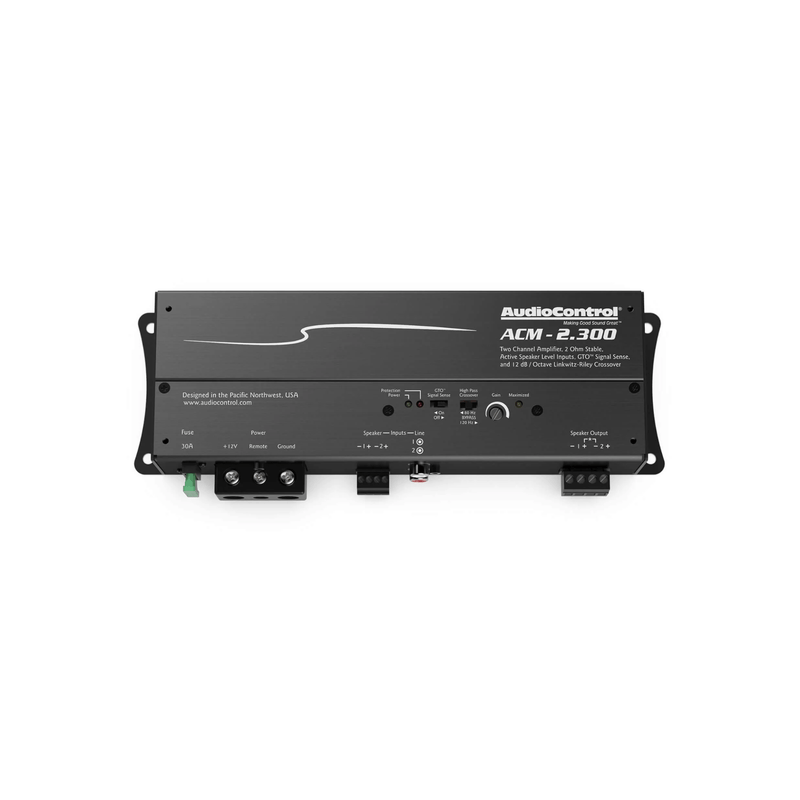

AudioControl ACM-2.300 Two Channel Micro Amplifier

Save 35% Save 35%
Original price £399.99 GBP
Original price £399.99 GBP - Original price £399.99 GBP
Original price £399.99 GBP
Current price £259.00 GBP
£259.00 GBP - £259.00 GBP
Current price £259.00 GBP
SKU 111328
Availability:
In stock
  • Free & Next-Day Delivery Available

    Next Day Delivery

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns

  • Free & Next-Day Delivery Available

    Quality Products

Key Features
  • 2-Channel Class D Amplifier: Efficient amplification in a compact design.
  • 75W RMS × 2 at 4 Ohms: Clean, powerful output for compatible speakers.
  • 150W RMS × 2 at 2 Ohms: Higher output for lower-impedance speaker configurations.
  • 300W RMS × 1 Bridged at 4 Ohms: Combine both channels for a higher-power application.
  • OEM Integration: Active speaker-level inputs for connection to compatible factory head units.
  • Balanced RCA Inputs: Connect to compatible aftermarket stereos and audio processors.
  • GTO™ Signal Sense: Automatically switches the amplifier on when an audio signal is detected.
  • Selectable Linkwitz-Riley Crossover: Choose 80Hz, 120Hz or bypass.
  • 32Hz PFM Subsonic Filter: Helps manage unwanted low-frequency signals.
  • Reversible Cover Plate: Offers flexible mounting configurations.
  • Compact Micro Design: Ideal for installations with limited space.
Specifications
Shipping information

Free Standard Delivery on all orders over: £50.00 (Excludes Northern Ireland, Channel Islands and International Orders)

UK Next Working Day Delivery with DPD: Need your order urgently? Take advantage of our next working day delivery option by placing your order before 16:00. This excludes Northern Ireland, Scottish Highlands and Channel Islands (Sorry!)

Saturday Delivery Option with DPD: Choose our Saturday delivery option during checkout for seamless and convenient weekend delivery, ensuring your needs are met precisely when you need them. This excludes Northern Ireland, Scottish Highlands and Channel Islands (Sorry!)

We are dedicated to providing exceptional service and convenience, ensuring swift and efficient delivery of your products. Benefit from our various delivery options tailored to meet your specific preferences and requirements.

Returns & warranty

Hassle-free Returns: At Car Audio Discount, we strive for your satisfaction. If you are not completely satisfied with your purchase, we offer a straightforward 14-Day Money Back Guarantee. Simply return any unused and unopened products within 14 days of delivery for a full refund.

Easy Return Process: To initiate a return, please ensure the product is in its original, unused condition and contact our customer service team. We will guide you through the simple return process and ensure a prompt refund.

Customer Satisfaction Priority: We place a strong emphasis on customer satisfaction and aim to make the return and refund process as convenient as possible for you. Your feedback is valuable to us, and we are dedicated to resolving any concerns promptly and efficiently.

Shop with confidence at Car Audio Discount, knowing that our 14-Day Money Back Guarantee ensures a hassle-free return process for your convenience and peace of mind.

AudioControl ACM-2.300 2-Channel Micro Amplifier – 300W RMS Class D

Product Description

Get powerful, high-quality sound from a compact amplifier with the AudioControl ACM-2.300 Two Channel Micro Amplifier. Designed for installations where space is limited but performance matters, this efficient Class D amplifier delivers impressive power and flexible connectivity for modern car audio systems.

The ACM-2.300 produces 75W RMS × 2 at 4 ohms and 150W RMS × 2 at 2 ohms. For applications requiring more power from a single output, it can also be bridged to deliver 300W RMS × 1 at 4 ohms.

Designed for both factory and aftermarket audio integration, the ACM-2.300 features active speaker-level inputs and balanced RCA line-level inputs. AudioControl's GTO™ Signal Sense technology detects an audio signal and automatically switches the amplifier on, helping simplify installation with compatible factory stereos.

Its selectable Linkwitz-Riley crossover offers 80Hz, 120Hz and bypass settings, while the built-in 32Hz PFM subsonic filter provides additional control over low-frequency signals.

With a reversible cover plate and compact micro-amplifier construction, the ACM-2.300 offers flexible mounting options for custom car audio installations.

Technical Specifications

Specification Details
Brand AudioControl
Model ACM-2.300
Series ACM Series
Product Type 2-Channel Car Amplifier
Amplifier Class Class D
Number of Channels
2
RMS Power @ 4 Ohms 75W × 2
RMS Power @ 2 Ohms 150W × 2
Bridged RMS Power @ 4 Ohms 300W × 1
Rated Voltage 14.4V DC
Minimum Impedance Stereo 2 Ohms
Minimum Impedance Bridged 4 Ohms
Balanced RCA Inputs 2
Speaker-Level Inputs 2
RCA Input Sensitivity 500mV–6V RMS
Speaker-Level Input Range 3–40V RMS
Frequency Response 10Hz–22kHz
Signal-to-Noise Ratio 102dBA
THD+N Less than 0.01%
Crossover Type Linkwitz-Riley
Crossover Settings 80Hz / 120Hz / Bypass
Crossover Slope 12dB per Octave
PFM Subsonic Filter 32Hz
GTO Signal Sense Yes
AccuBASS No
Fuse Rating 30A
Recommended Power/Ground Wire Range 10–4 AWG
Dimensions (W × D × H) 239 × 76 × 44mm
Weight Approx. 0.95kg

OEM Integration & Connectivity

The ACM-2.300 is designed to integrate with compatible factory and aftermarket audio systems.

Speaker-Level Inputs: Connect to compatible factory speaker outputs, allowing you to add amplification without necessarily replacing the original head unit.

Balanced RCA Inputs: Connect an aftermarket head unit or compatible audio processor through RCA line-level connections.

GTO™ Signal Sense: Detects an incoming audio signal and automatically activates the amplifier in supported installations.

Flexible Audio Configuration

Use the ACM-2.300 as a conventional two-channel amplifier to power a pair of compatible speakers, or bridge its channels to deliver up to 300W RMS at 4 ohms for a suitable application.

The selectable crossover and PFM subsonic filter provide additional control over your audio system's frequency response.

Installation Information

  • Suitable for compatible 2-ohm stereo speaker loads.

  • Bridged operation requires a minimum 4-ohm load.

  • Use correctly rated fused power and ground wiring.

  • Ensure adequate ventilation and secure mounting.

  • Check speaker impedance and wiring configuration before installation.

  • Professional installation is recommended for factory audio integration.

Please check your audio system compatibility and installation requirements before ordering.
