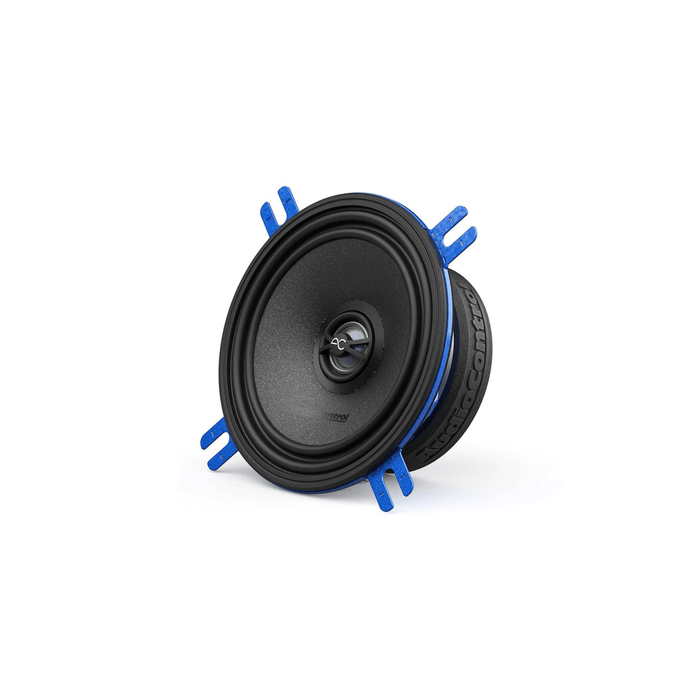

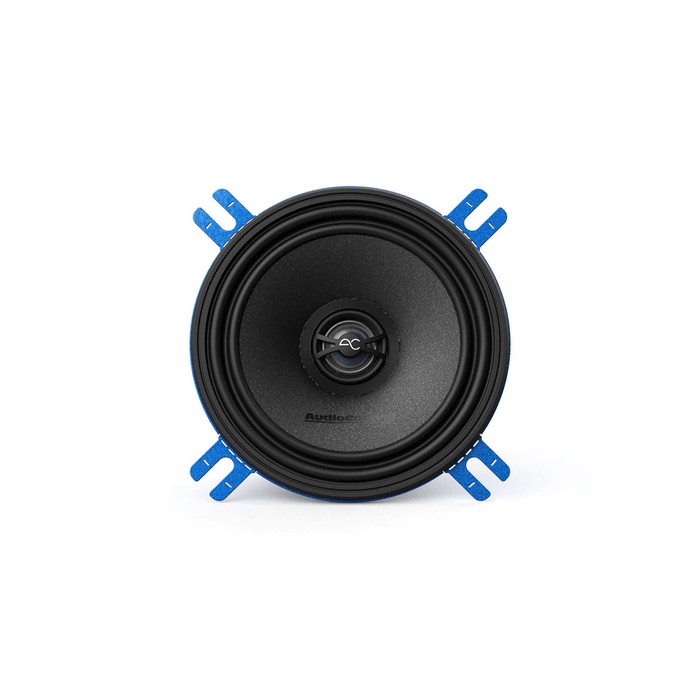

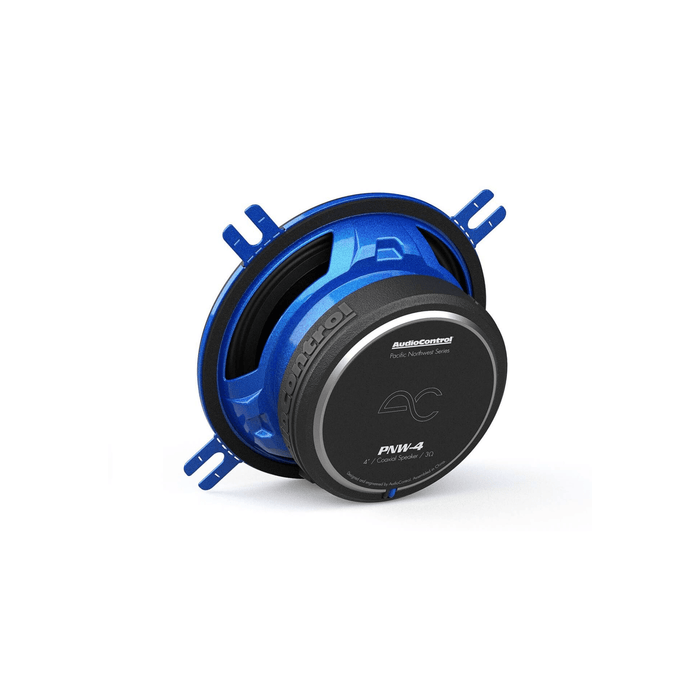

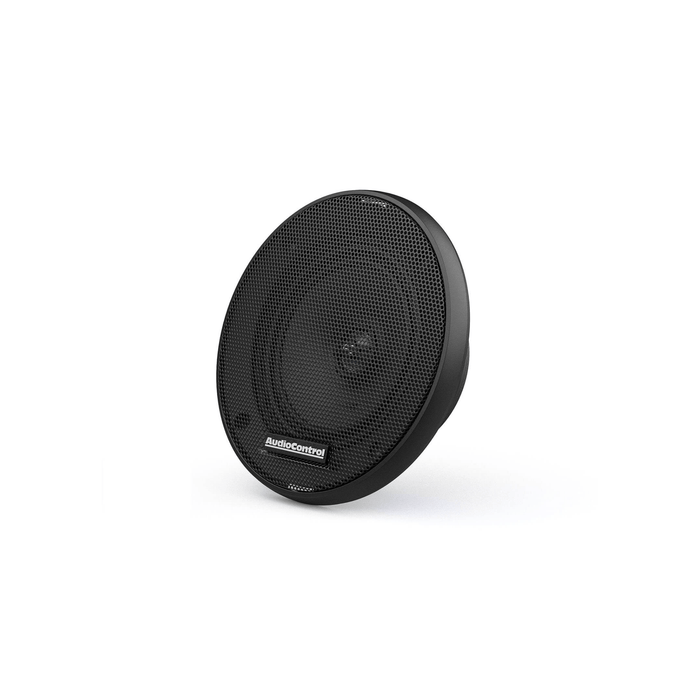

AudioControl PNW-4 – Premium 4-Inch Coaxial Speakers

The AudioControl PNW-4 speakers are meticulously engineered to elevate your in-car audio experience. These 4-inch coaxial speakers combine robust construction with advanced audio technology, delivering exceptional sound clarity and depth.

Key Features:

• Edge-Enhanced Steel Frame: Provides added structural strength for durability.

• Black Anodized Voice Coil Former: Ensures superior heat dissipation, enhancing performance.

• Linear Double-Roll Surround: Allows precise cone movement for accurate sound reproduction.

• Rigid Poly Mica-Coated Cone: Optimizes sound reproduction with reduced distortion.

• Rear Dampened Hybrid Silk Dome Tweeter: Delivers extended frequency response for detailed highs.

• Concentric Point Source Design: Ensures seamless transition between midrange and tweeter.

• Sonic Diffuser and Radiant Collar: Enhances off-axis frequency response for a wider soundstage.

Specifications:

• Crossover Type: Butterworth

• DC Resistance (Re): 2.6 ohms

• Filter Type: High-Pass

• System Frequency Response (Fs): 75 Hz – 20 kHz

• Crossover Frequency: 5900 Hz

• Slope (Octave): -6 dB

• Midrange Voice Coil Diameter: 25 mm

• Overall Diameter (without Grille): 5.23 inches (133 mm)

• Cutout Diameter: 3.60 inches (91.5 mm)

• Mounting Depth: 1.66 inches (42.2 mm)

• Height (without Grille): 0.16 inches (4.1 mm)

• Height (with Grille): 0.64 inches (16.5 mm)

• Motor Diameter (with Cover): 2.96 inches (75.4 mm)

• Grille Overall Diameter: 5.40 inches (137 mm)

Whether you're upgrading your factory-installed speakers or building a custom audio system, the AudioControl PNW-4 offers a perfect blend of quality, performance, and reliability, transforming your vehicle's sound experience.
